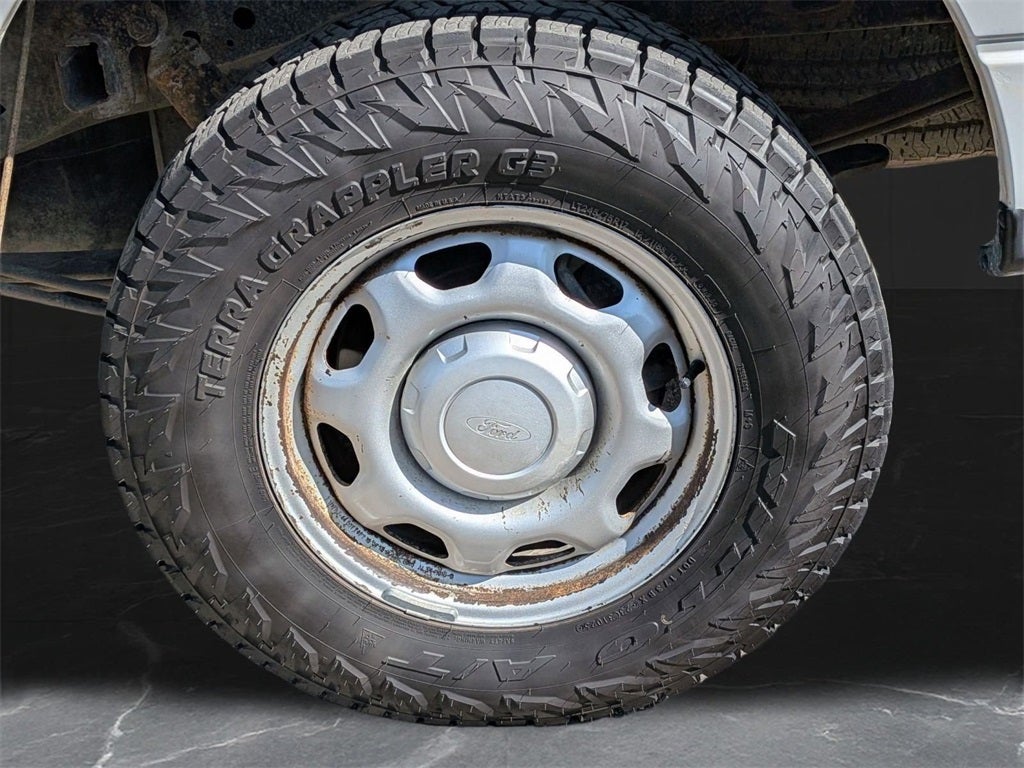

• P235/75R17 all-terrain BSW tires
• 17" gray styled steel wheels
• Full size spare tire
• Under frame winch-type spare tire carrier w/safety catch & lock
• Black front bumper fascia
• Argent front/rear step bumper
• Black front/rear stone cuffs

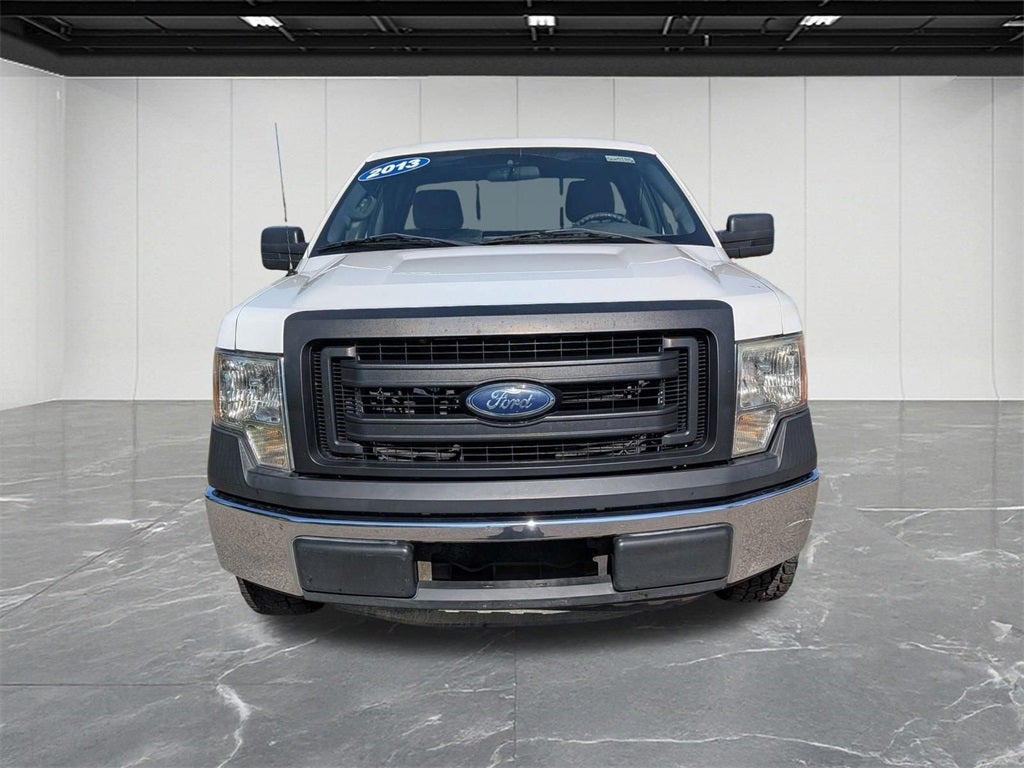

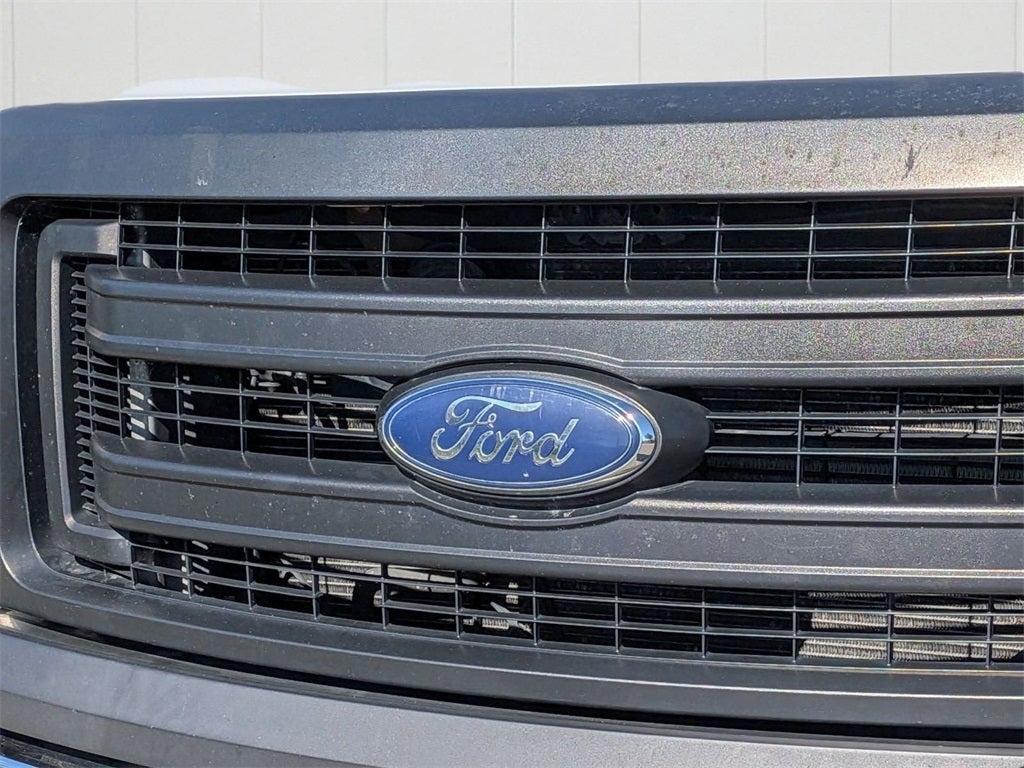

• Black grille surround w/black "two-bar style" insert
• Cargo lamp integrated w/high mount stop light
• Black manual side mirrors
• Fixed rear window
• Rear solar tint glass
• Variable interval wipers

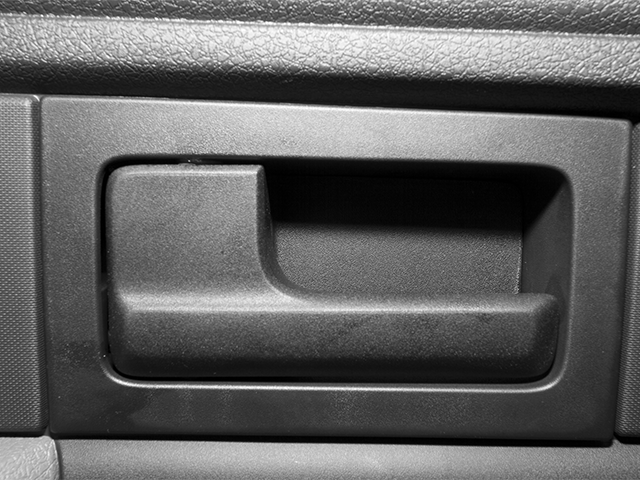

• Black door & tailgate handles

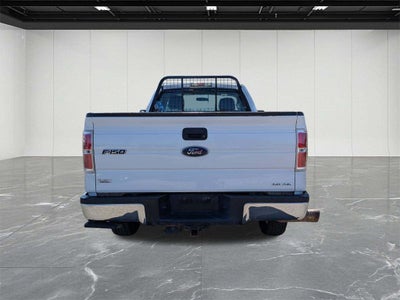

• Removable tailgate w/key lock & lift assist

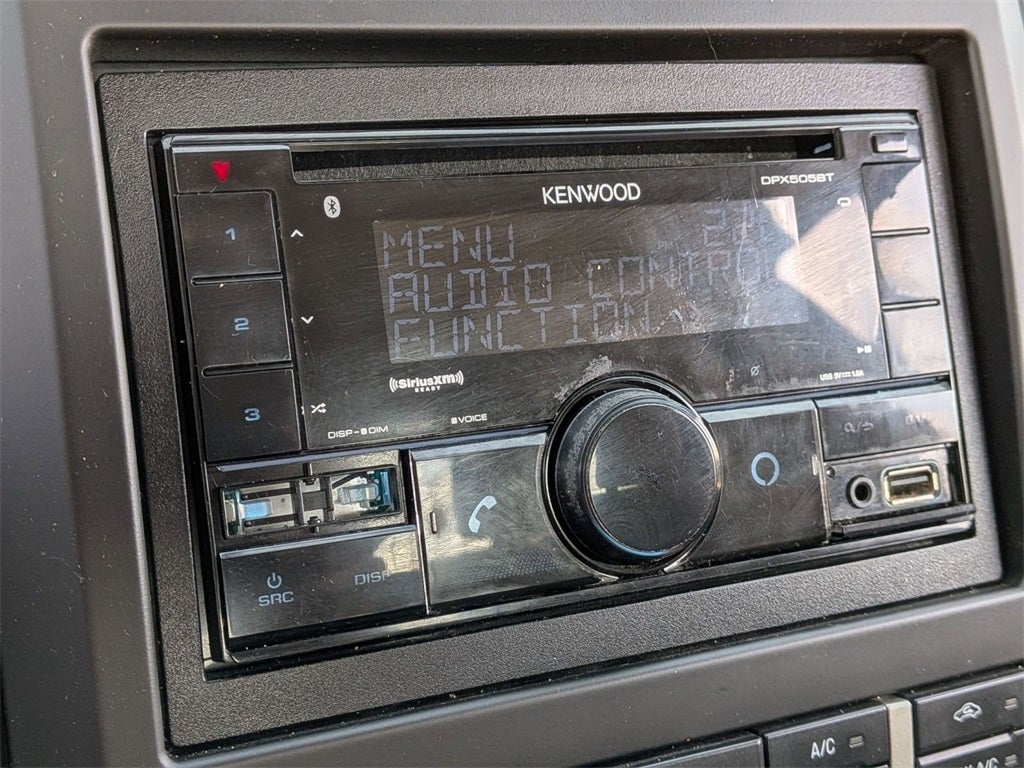

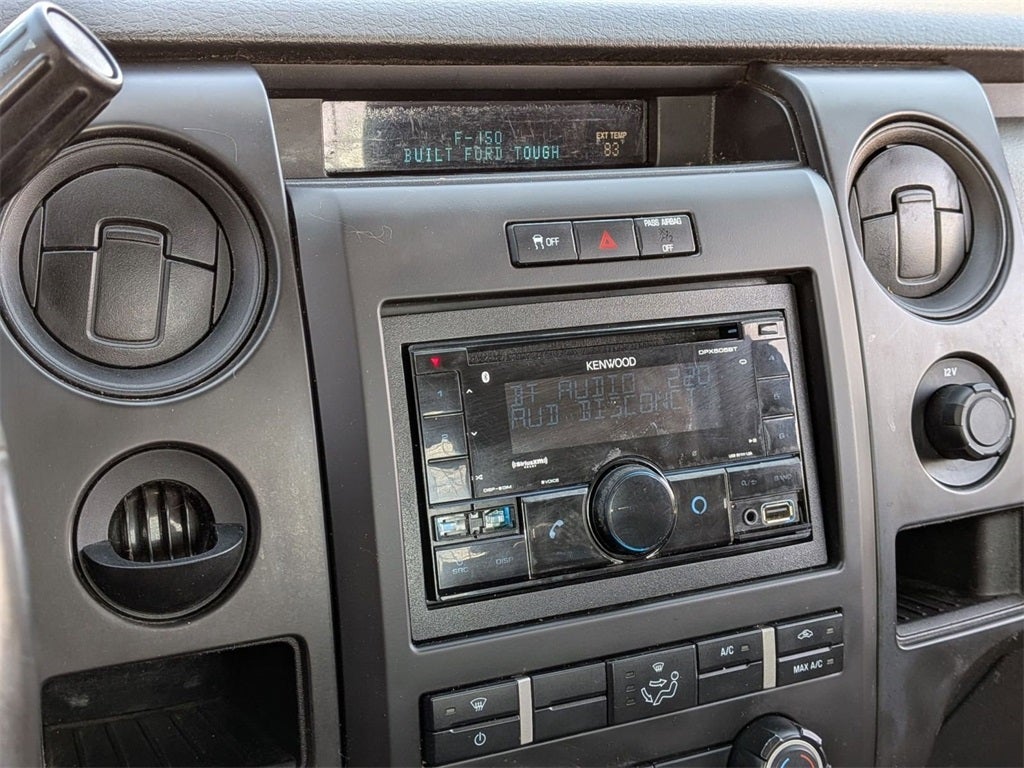

• AM/FM stereo w/clock

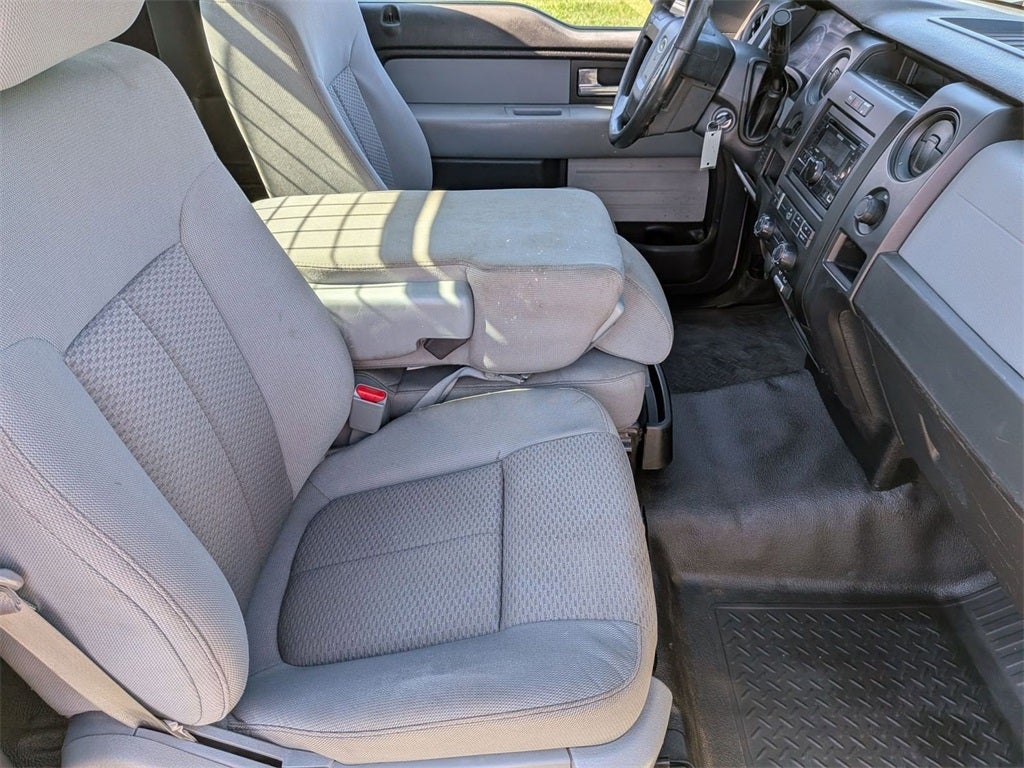

• Vinyl 40/20/40 split bench front seat
• Black vinyl floor covering
• Driver & passenger door scuff plates

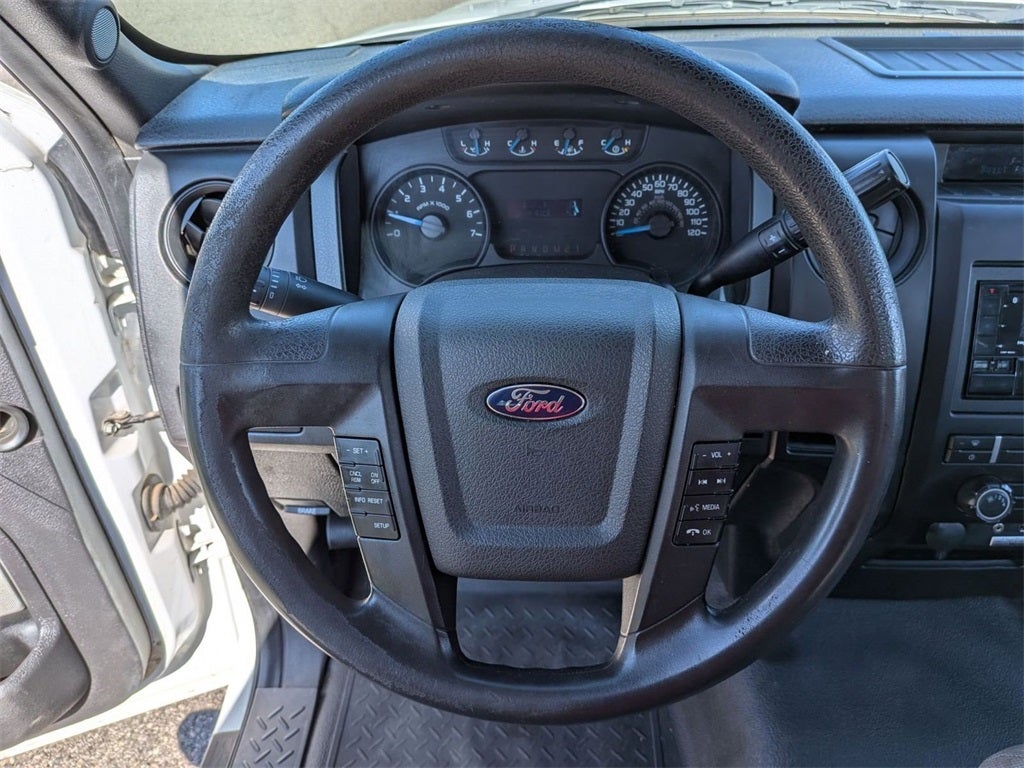

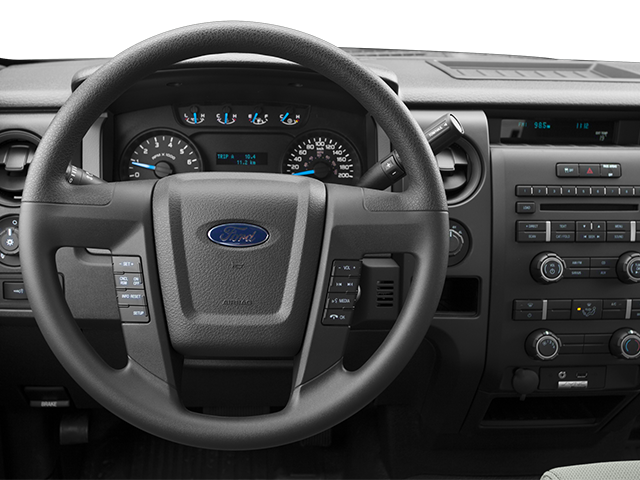

• Black urethane steering wheel
• Tilt steering column
• Display center -inc: warning messages & text functions
• SecuriLock passive anti-theft system (PATS)

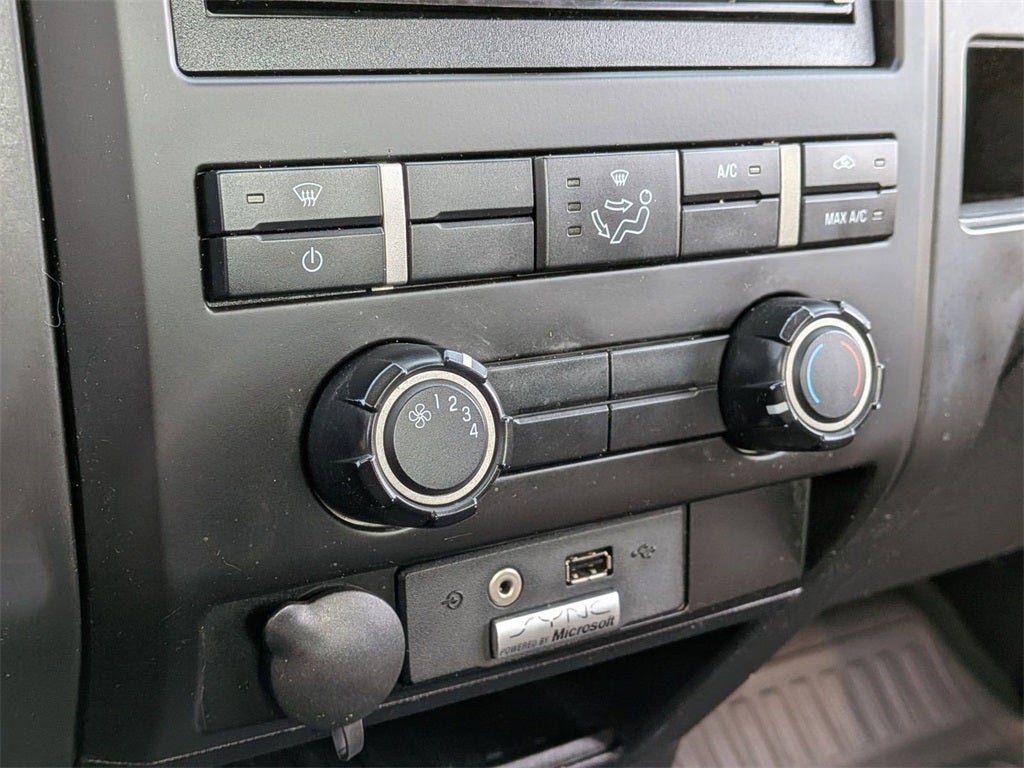

• Manual air conditioning
• Black ring w/black vanes air conditioning registers

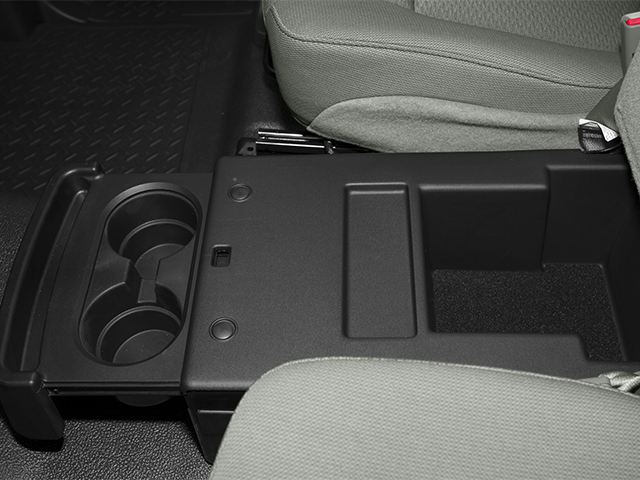

• Deployable cupholder under center portion of seat
• Front pwr point
• Sunvisors w/driver side strap, passenger mirror
• Front passenger side A-pillar grab handle
• Dome light

• Anti-lock braking system (ABS)
• AdvanceTrac w/Roll Stability Control (RSC)
• Hill start assist
• Dual stage driver & passenger front airbags
• Dual stage driver & passenger seat-mounted side airbags
• Safety Canopy front side curtain airbags
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Auto lock safety belt feature for child seats
• Tire pressure monitoring system
• Dual note horn

3.7L V6 FFV ENGINE

• (STD)

• Communications Package
• Equipment Group 101A Mid
• Power Equipment Group
• Trailer Tow Package
• XL Plus Package
• 4 Speakers
• AM/FM radio
• Air Conditioning

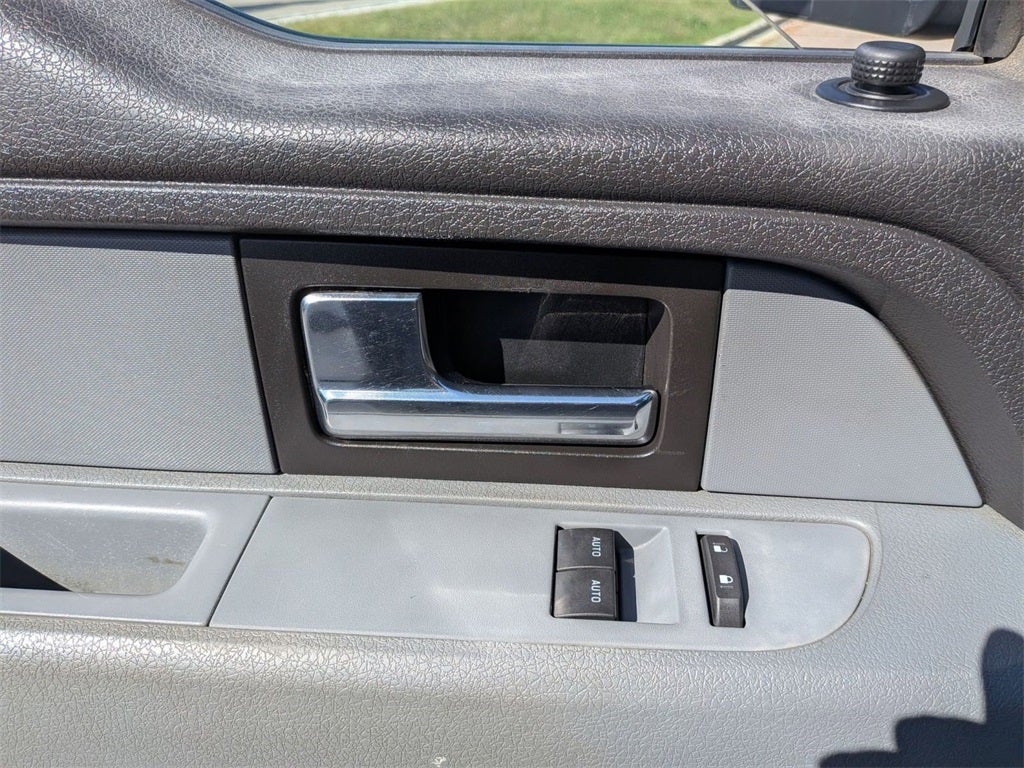

• Power Front Windows
• Power steering

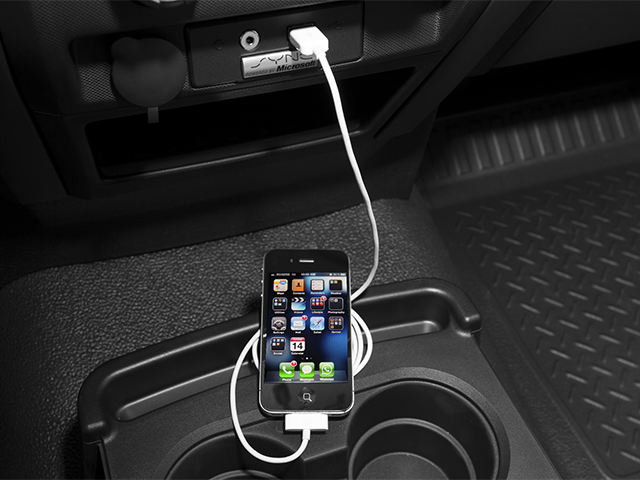

• SYNC
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Power Door Locks
• MyKey
• Perimeter Alarm

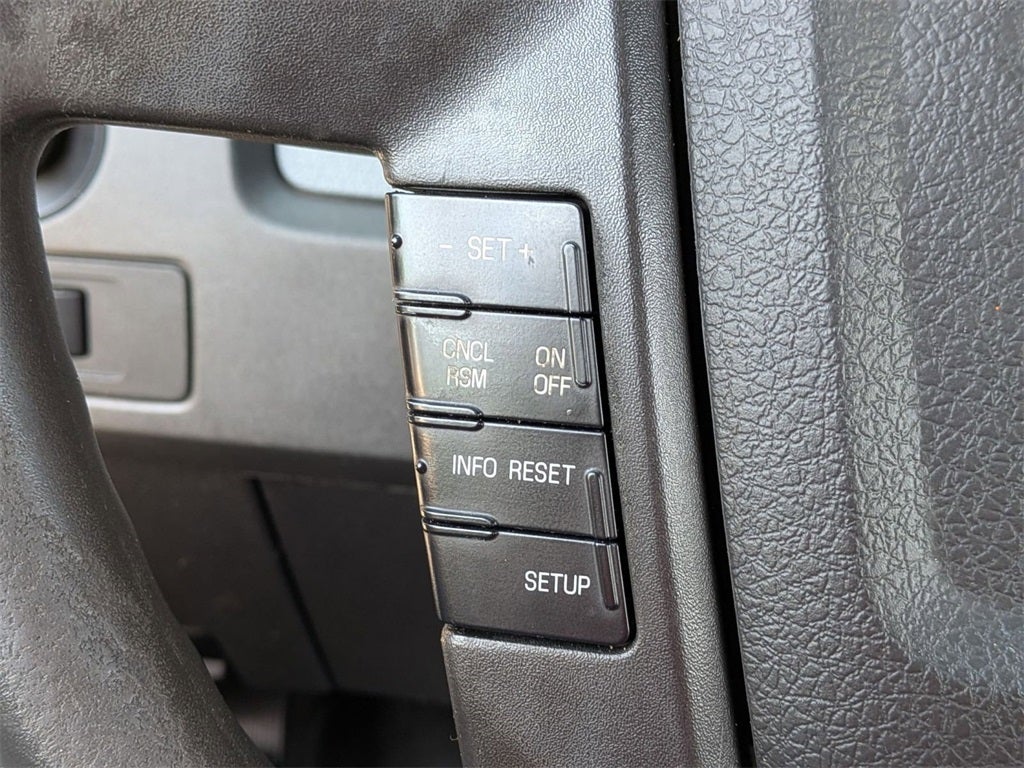

• Cruise Control

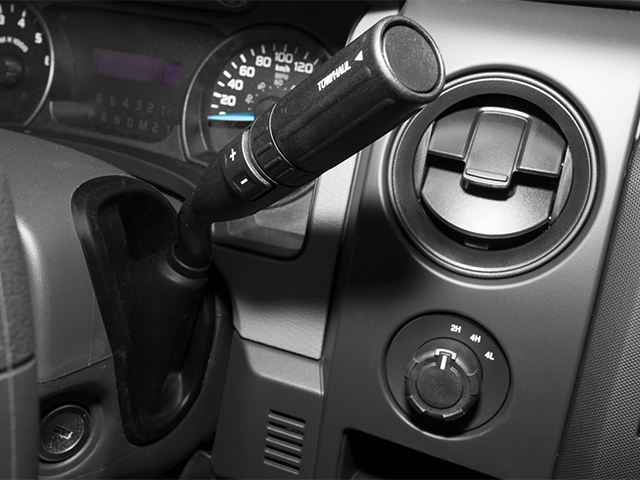

• SelectShift Automatic Transmission
• Driver door bin
• Illuminated Entry
• Passenger vanity mirror

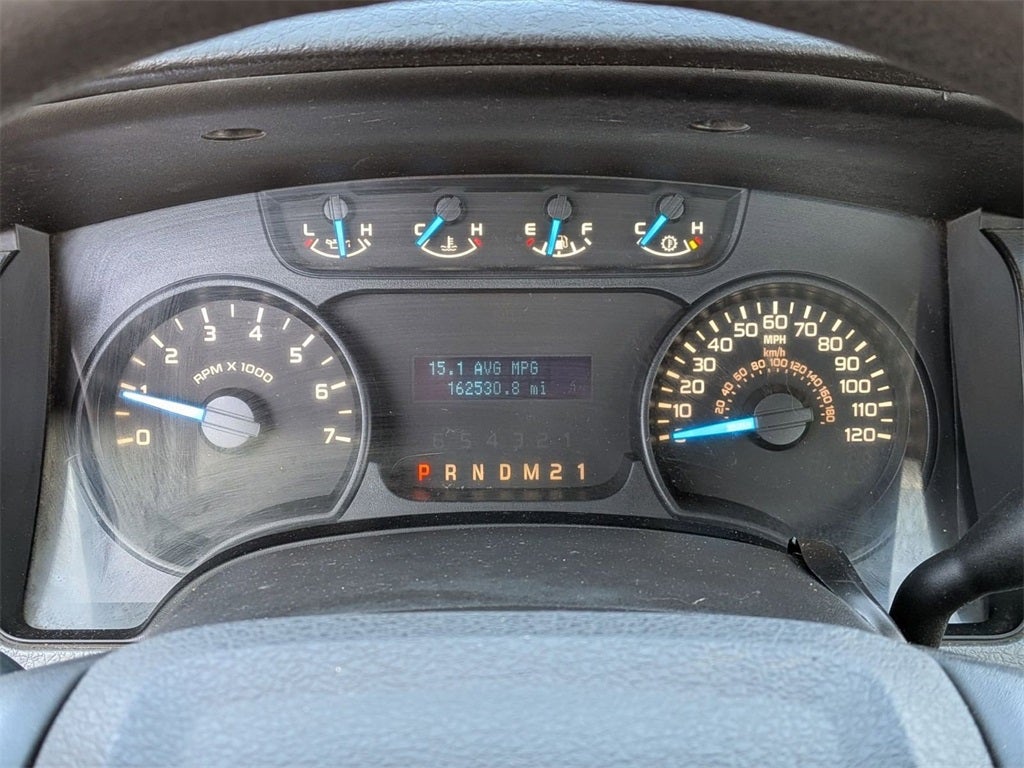

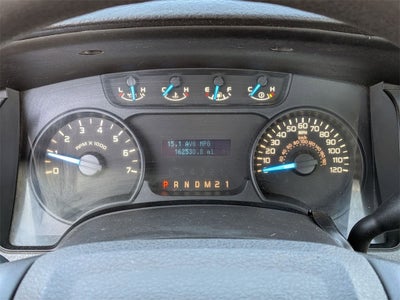

• Tachometer
• Tilt steering wheel

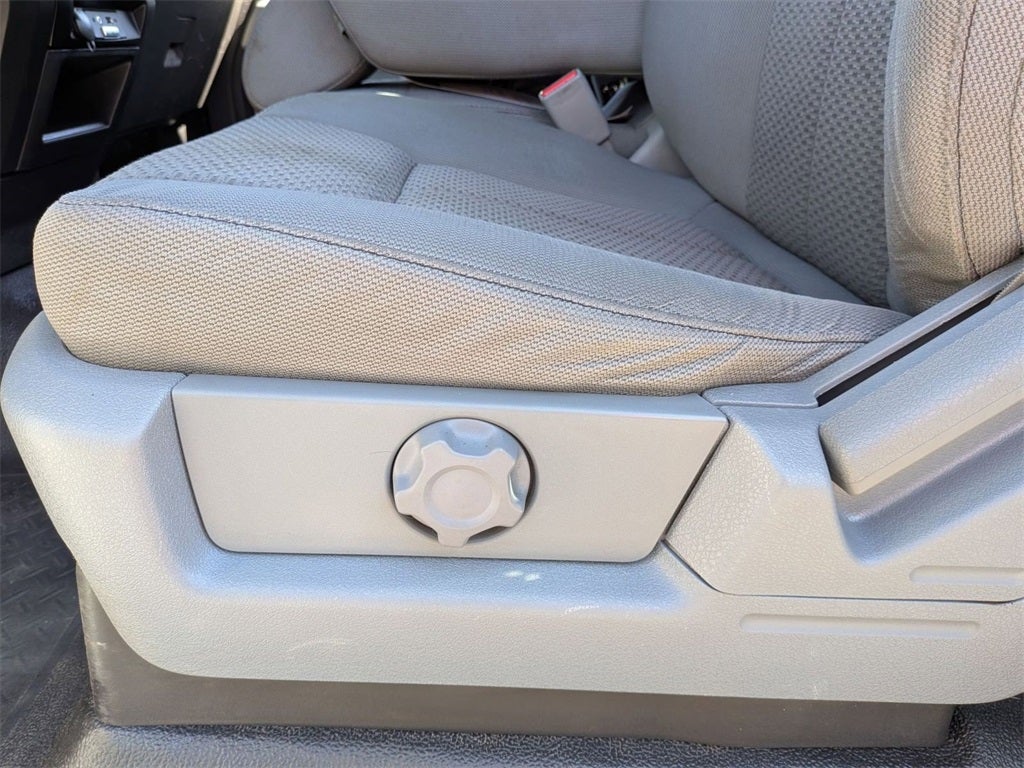

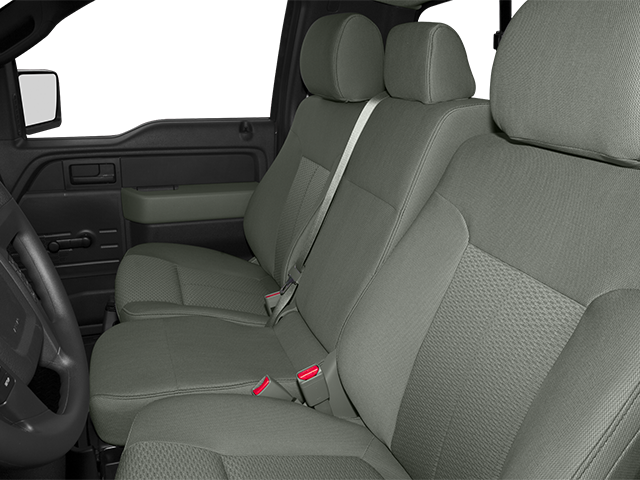

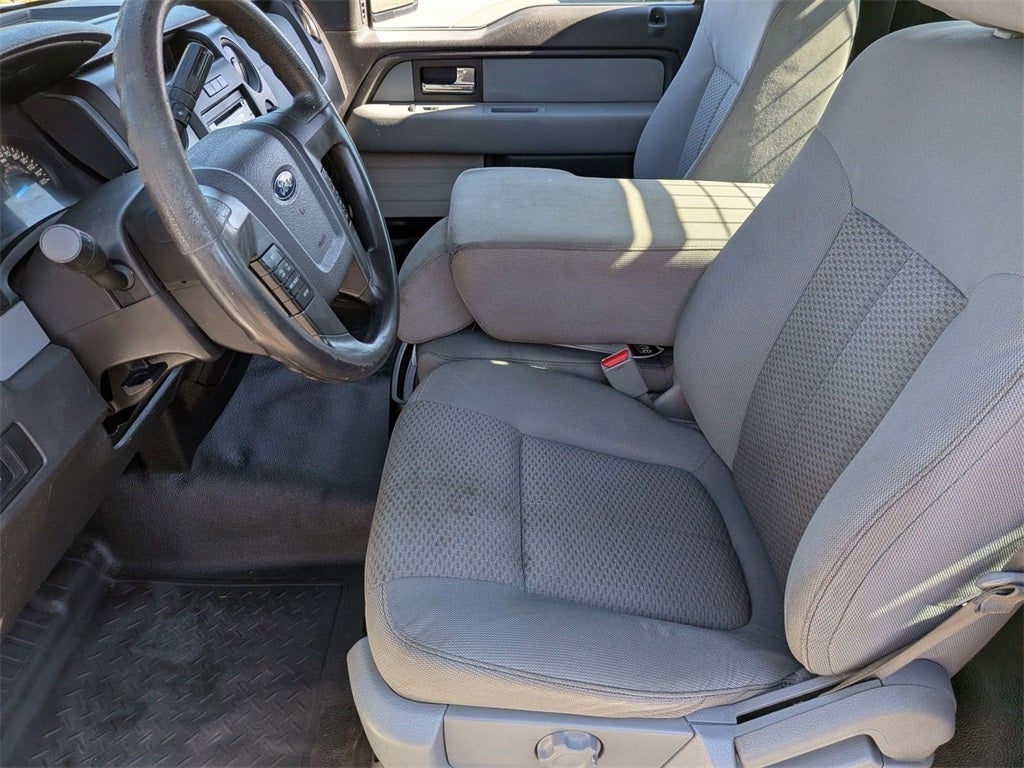

• Cloth 40/20/40 Front Seat
• Passenger door bin
• 17" Gray Styled Steel Wheels
• Variably intermittent wipers
• Brake Assist
• Keyless Entry
• Stability Control
• New Feature 3
• Tonneau Cover

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 15.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3450
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2782
• Curb Weight - Rear (lbs): 1982

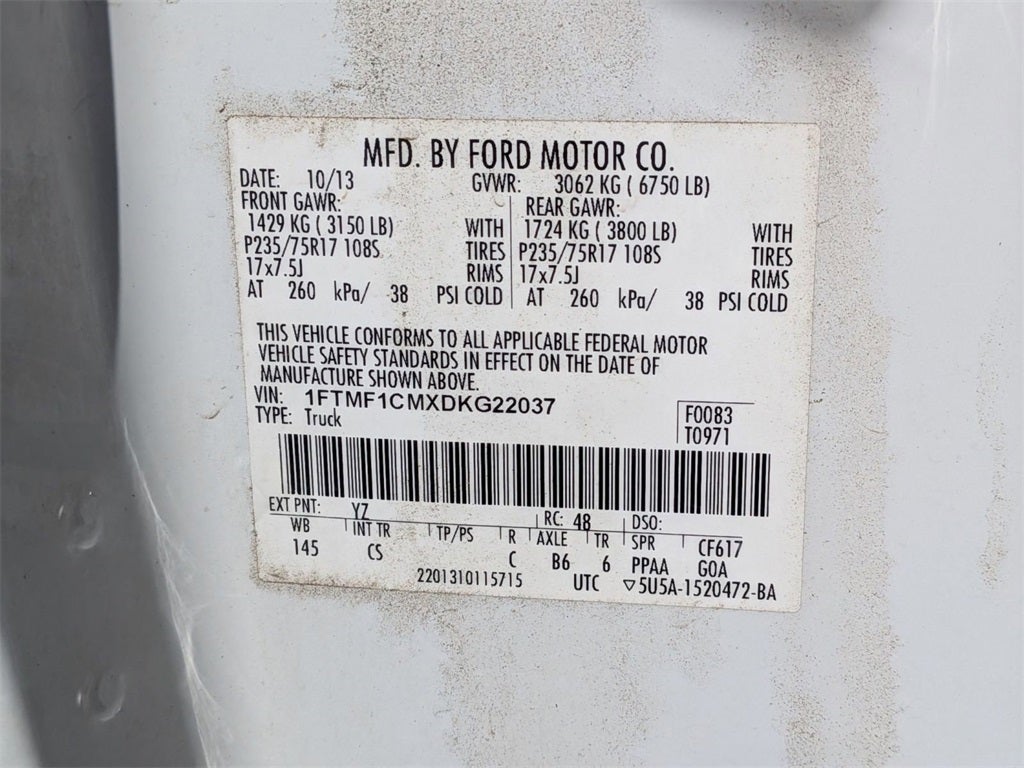

• Gross Vehicle Weight Rating Cap (lbs): 6750
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 840
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 5600
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1400
• Suspension
• Suspension Type - Front: Double-Wishbone
• Suspension Type - Rear: Live Axle
• Spring Capacity - Front (lbs): 3450
• Spring Capacity - Rear (lbs): 3800
• Axle Type - Front: Long-Spindle
• Axle Type - Rear: Semi-Float Beam
• Axle Capacity - Front (lbs): 3750
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 36.068
• Shock Absorber Diameter - Rear (mm): 32.004
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.78 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.413
• Tires
• Front Tire Order Code: T7B
• Rear Tire Order Code: T7B
• Front Tire Size: P235/75R17
• Rear Tire Size: P235/75R17
• Spare Tire Size: P235/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 144.5
• Length, Overall w/o rear bumper (in): 231.9
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 75.0
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 135.8
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.4
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 81.3
• Ext'd Cab Cargo Volume (ft³): 17.4
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 66.6
• Front Hip Room (in): 60.5
• Summary

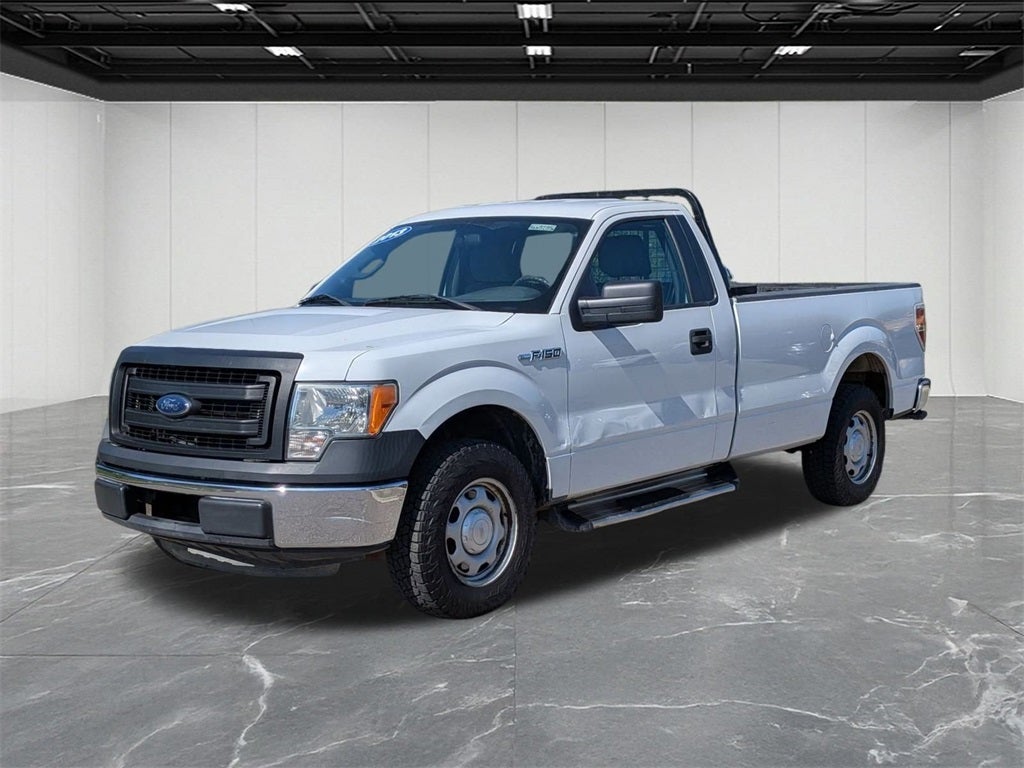

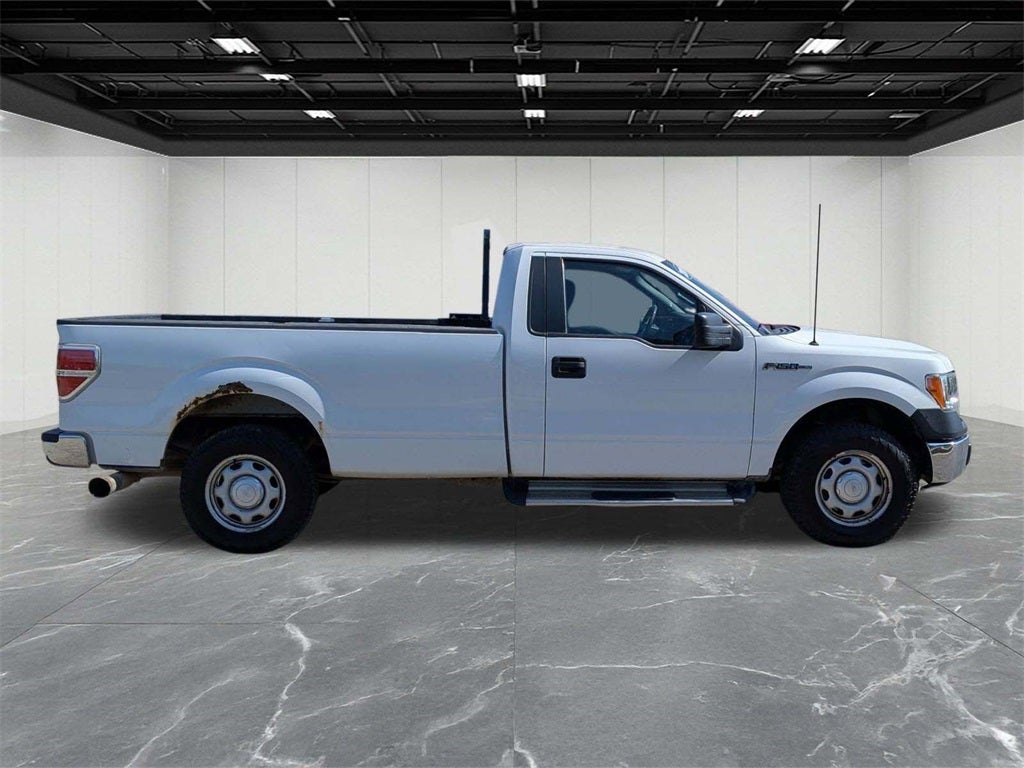

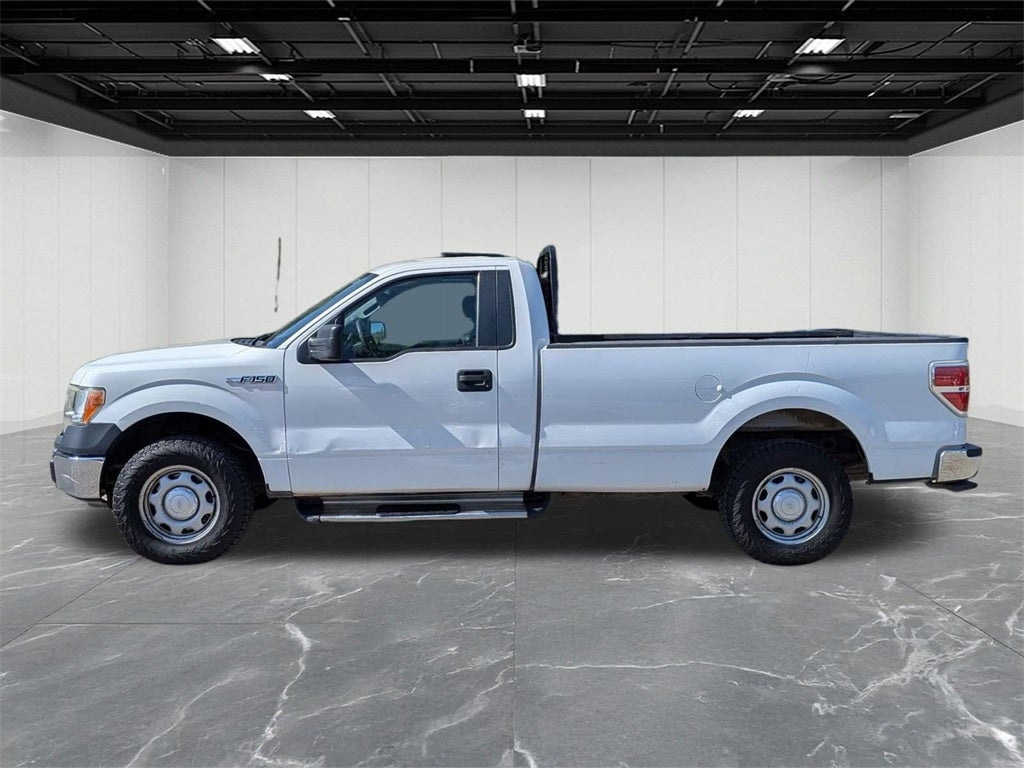

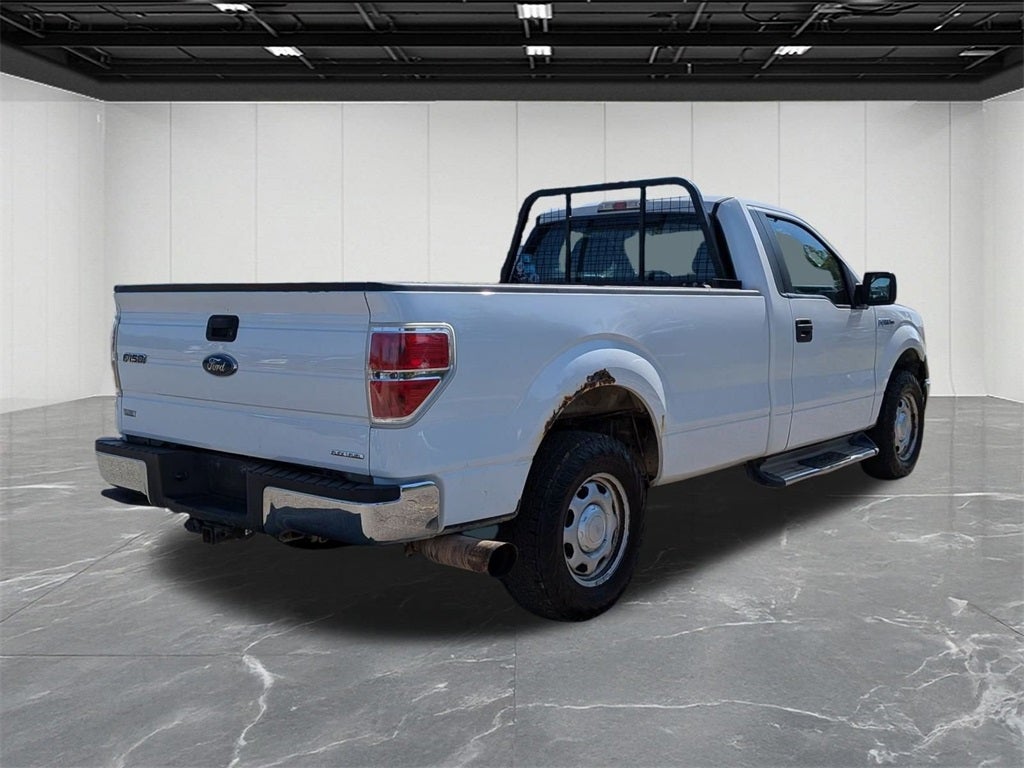

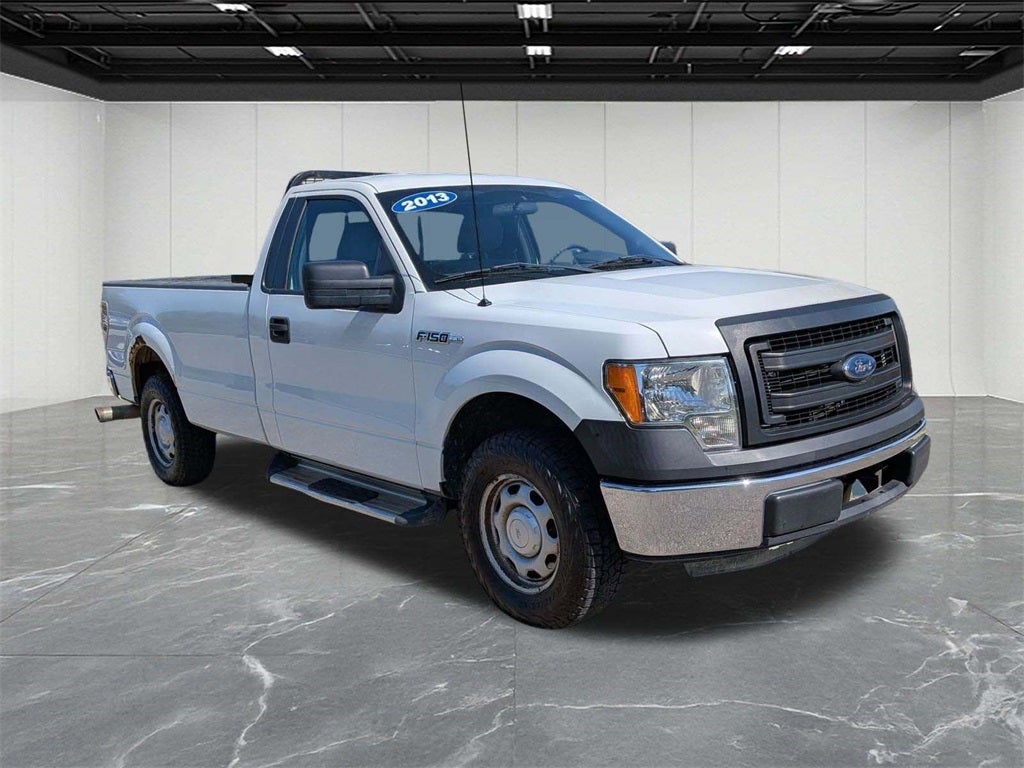

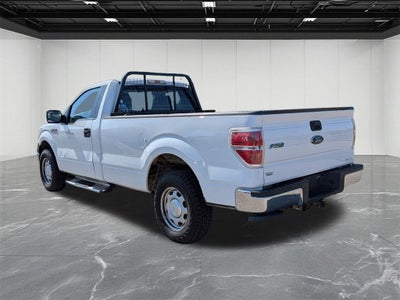

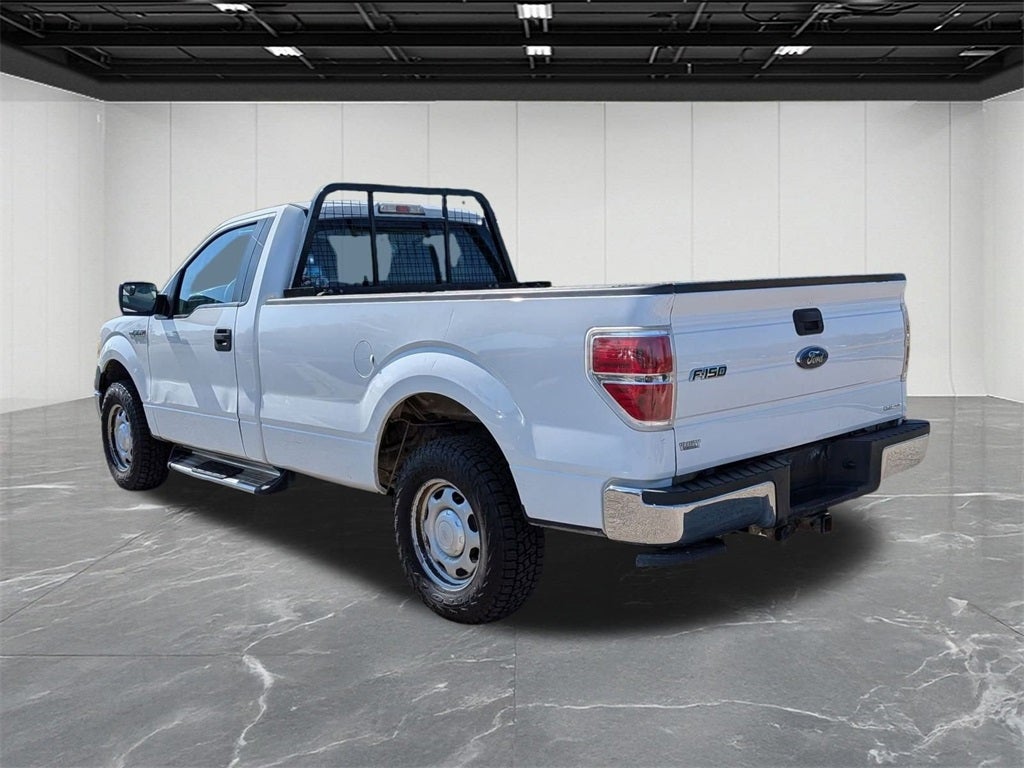

• Vehicle Name: Ford F-150
• Body Style: Regular Cab Pickup
• Emissions
• EPA Greenhouse Gas Score: 3 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.7
